M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections

M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections
M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections

Ampliación de imagen :  M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections

Datos del producto:

Lugar de origen: Porcelana
Nombre de la marca: BETT
Certificación: CE UL RoHS
Número de modelo: M29

Pago y Envío Términos:

Cantidad de orden mínima: 50
Precio: 2.7
Tiempo de entrega: 5-8 días laborables
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Contacto
Descripción detallada del producto
Corriente nominal: 1-50A Nivel de propiedad intelectual: IP65 - IP68
Material de contacto: Cobre Material de la carcasa: Nylon
Género: Hombre/Mujer Forma: Ronda, completamente

M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections
Product Overview
BrandBett
Application ScopeLED industry, Marine, Geothermal, Street Lighting, Aquaculture, Laser, Lighting, Furniture, Screens
TypesWaterproof Plug/Waterproof Connectors/Multi-split Waterproof Plug/Nylon Waterproof Plug/Fabricated Waterproof Plug
Interface TypeAC/DC
ShapeRound/Flat Look
ProcessStamping/Welding/Injection Molding
FeatureWaterproof
Contact MaterialPure Phosphor Copper
Joint MaterialPVC/PBT/PA66/PC+ABS
Pin Configuration2-12 Core
Pin Number2-12 Needle
Cable LengthCustomizable (mm)
FormSocket, Plug Stamping or Injection After Welding
Rated Voltage24V DC (AC 110V)
Current Rating1-50A
Breakdown Voltage1500V or Higher (Special Requirements Should Be Mentioned in Advance)
Working Temperature-40°C to 105°C
Protection GradeIP65 - IP68 (Other Requirements Available When Ordering)
Wire MaterialsPVC, Rubber, Silicone, PE, etc. (Standard: GB RVV Sheath Cable)
CertificationAvailable per Customer Requirements: CCC, VDE, UL, ROHS, SGS, etc.
Appearance ColorBlack, White, Transparent, etc.
Standard Product Specifications
Pin Configuration2 Core
Cable Cross-Section0.75 sq. mm (Standard)
Cable LengthCustomizable (Standard: 20cm Male/Female Pairs)
Joint MaterialPVC
Wire TypeCCC GB RVV Sheath Cable
Standard Length200mm per piece

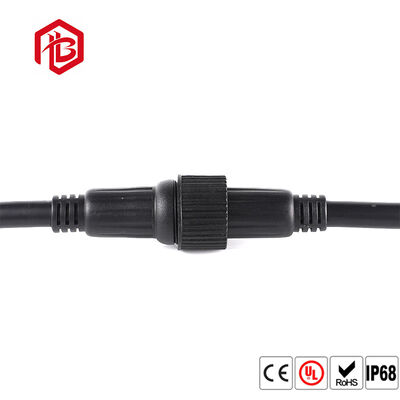

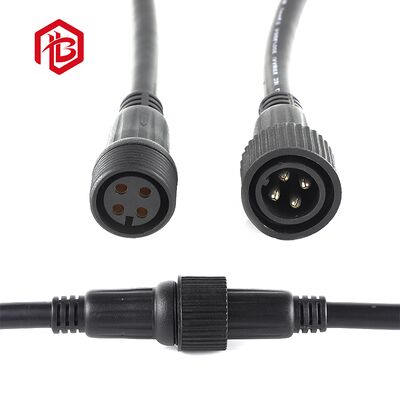

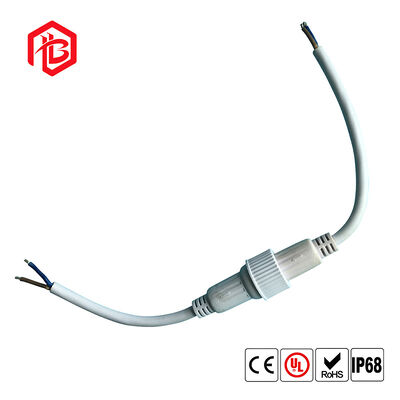

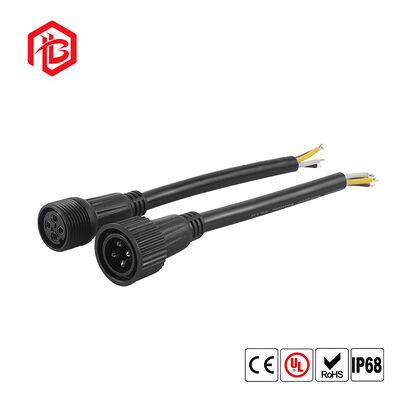

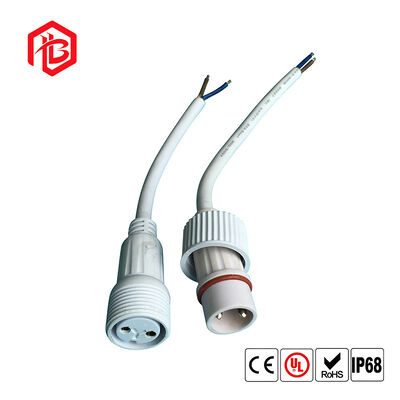

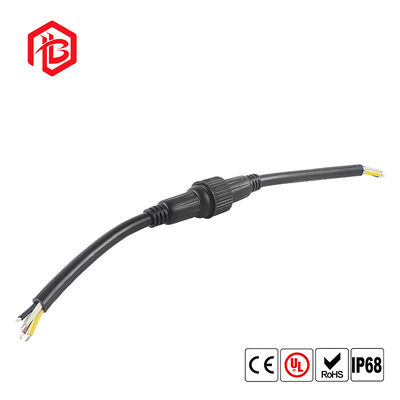

Product Images
M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections 0 M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections 1 M29 Waterproof Copper Connector with Cable for Solar Power System and Wire Connections 2
Product Line & Customization
  • Main Product Line: M5, M12, Aviation Connectors, Panel Mount Connectors, Specialized Solutions
  • OEM/ODM Services: Custom development based on your drawings and samples
  • Customization Available: Design and manufacturing for specific pin counts, cable specifications, colors, and lengths
Ordering & Delivery
  • Minimum Order Quantity: Varies by item (1pc to 100pcs)
  • Free Samples: Available for low-cost products (customer pays freight)
  • Delivery Time:
    • Most items: within 10 working days
    • Hot-selling items: 3-5 working days
    • Customized items: case by case basis
Payment & Support
  • Payment Terms: T/T, PayPal, Western Union, Alibaba Guaranteed Payment
  • Quality Guarantee: Returns accepted for quality issues with long-term online service
  • After-Sales Service: Comprehensive support including replacement for damaged items, assembly guidance, and responsive solutions
Ordering Instructions

When ordering, please specify: pin configuration, cable cross-sectional area, color, cable length, tail stripping and tinning length (standard is 3cm stripping and 3mm tinning). Other special requirements should be submitted with your order.

Customizable any length; regular 20 cm male/female pairs available.
